REDSAIL Clover Series Laser Engraver and Cutter X700D

2,299.00$

If you’re looking for a professional grade desktop laser engraving or cutting machine to inspire your small business or DIY projects, then REDSAIL Cyclone Series Laser Engraving and Cutting Machine may be the best laser machine under $2K on the market today. Get 1200mm/s more speed and 100W more CO2 power vs. competing hobby lasers.

If you’re looking for a professional grade desktop laser engraving or cutting machine to inspire your small business or DIY projects, then REDSAIL Cyclone Series Laser Engraving and Cutting Machine may be the best laser machine under $2K on the market today. Get 1200mm/s more speed and 100W more CO2 power vs. competing hobby lasers.

SPECS

Model X700D
Laser tube type Water CooIing Co2 Glass sealed
Control system DSP
Controller Ruida (RDWorks), TopWisdom(AutoLaser)
Drive type Micro Stepping Motor
Laser Power 50W/60W/80W/100W
Working Size (mm) 700 x 500
Red Dot Pointer Yes
Location precision <0.01mm
Max speed 1000 mm/s
Image form Plt, Dxf, Bmp, Ai, Dst
Resolution 2500 DPI
Repeatability 0.01 mm
PC Interface USB3.0/USB Disk/Network
Motorized Up and Down table 200mm
Machine dimensions (mm) 1400*920*650
N.W. 100KG
G.W. 120KG
Optional Upgrade Water Chiller(CW-3000/CW-5000/CW-5200)

Laser Beam Combiner

Rotary Attachment



APPLICATION

REDSAIL Clover Laser Engraver and Cutter are for the different kinds of application, such as Advertising industry, Office Industry, Packaging Industry, Gift Industry, Decoration Industry, Printing Industry and so on.

CO2 Material Compatibilit Laser Marking/Engraving Laser Cutting
Wood
Acrylic
Fabric
Glass
Coated Metals
Ceramic
Delrin
Cloth
Leather
Marble
Matte Board
Melamine
Mother of Pearl
Paper
Mylar v
Pressboard
Rubber
Wood Veneer
Fiberglass
Painted Metals
Tile
Plastic
Cork
Anodized Aluminum
Stainless Steel *
Brass *
Titanium *
Bare Metals *
CO2 lasers will mark bare metals when coated with a metal marking solution. For more information, visit our laser metal marking page.
Please contact us for more specific materials which is not listed, we can process a sample for confirmation.

 FEATURES

ASK ABOUT OUR FREE ON-SITE DEMO!

We can make a free LIVE demonstration online!

2-Why Material Thru-Pass-Thru Points For Greater Flexibility

Dramatically improve material flexibility using REDSAIL Thru-Pass-Thru points. Expand your production work area with REDSAIL 2 way material pass through points. Slide and extend your material outside of the work area either front to back or side to side.

REDSAIL Elite-SERIES 100W CO2 Laser Machine

REDSAIL Elite Series – Select between 80 and 150 watts of cutting power with a life time performance of up to 10,000 hours. We test our laser multiple times throughout the assembly process to ensure a quality beam profile and maximum power.

The Elite-Series is engineered to handle demanding production environments and long workdays while delivering consistent results for every job. By constantly refining and improving the beams power density the Elite-Series generates a powerful cutting beam with exceptional engraving resolution. Each Elite-Series tube includes 18 Months warranty and each Elite-Series Laser Machine has lifetime free warranty.

Laser Software

RUIDA DIGITAL CONTROLLER: The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8 which can also be compatible with LightBurn software– all-in-one layout, editing, and control software package that is extremely intuitive and feature rich.

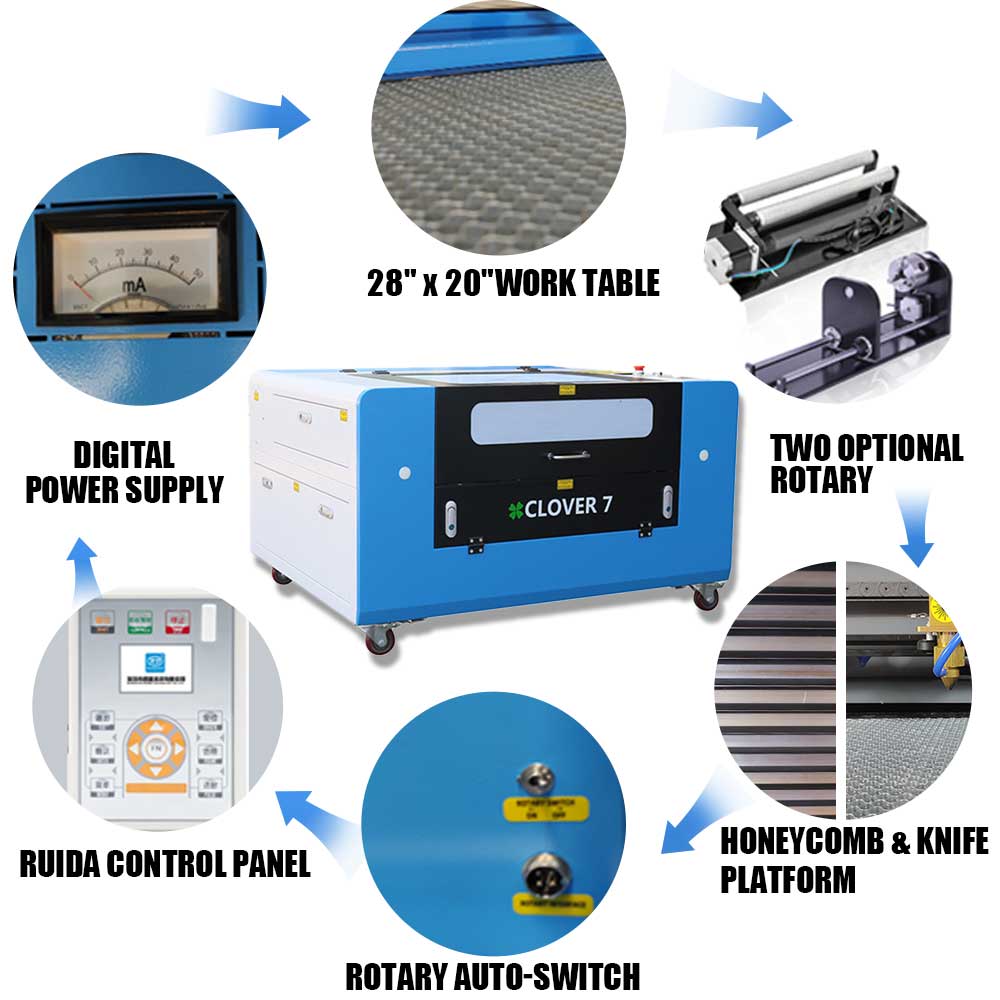

Honey Comb & Knife Blade Platforms Offers Flexible Material

Both the Knife Blade and Honeycomb platforms are included for flexibility whether cutting or engraving material.

REDSAIL Elite Laser Details:

VENTILATION: 550W Exhausted fan expels smoke and fumes to create a safer workspace and extend the service life of your machine.

CROSS RED DOT GUIDANCE: More accurate cross red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies the positioning size, allowing an effortless project setup process.

AIR ASSIST: Provides critical air flow during laser processing preventing material deformation. Also, Keeps dust, debris and combustible gas away from laser head preventing focal lens contamination, keeping your worktable cleaner and more safe and engravings more precise.

LINEAR RAIL GUIDING SYSTEM: Equipped with the better transmitting system -new available Drive highest precision in same class stepper motor drive system and PMI linear rail guide way for higher precision and longer service life.

WATER PROTECTION SYSTEM: Pre-installed signal plug along with the included industry water chiller allow for a fast and easy setup, protecting the laser tube max working life.

Push Button Z-Axis

Motorized Z-Table With Working Height Of 8″ accommodates taller objects.

The taller cabinet for the REDSAIL Elite Industrial series laser cutter gives you additional work space including up to 8″ of vertical Z-axis movement.

At the push of a button you can lower the platform to accommodate taller objects of up to 10″ in height.



Stepper Drive System

New available Drive highest precision in same class stepper motor drive system.

New & Easy Laser/PC Connectivity Via. WI-FI, Ethernet, Or USB

Various laser to PC connectivity choices – USB, Ethernet, or WiFI (router included).

New 256MB USB Flash Drive For Alternative Job Storage

As an alternative to the onboard memory available on the controller card you can also save or run jobs from the 256 MB USB flash drive.

Optional Auto-Focus

More earlier to adjust the focal length, you can get all ready for working just one second!

PC Compatibility Windows, Mac OS, Or Linux

Just Using your current computer! Windows 32 or 64 bit is ok for any software, Windows, Mac OS, and even Linux operating systems 32 or 64 bit is ok if you use LightBurn.

Quality Management System -CE/FDA

More reliable with CE and FDA certificate.

Tech Support 24 hours

REDSAIL Tech Support team is here to serve and support from the day you receive your REDSAIL Laser and for as long as you own the machine. Our tech support utilizes video, help manuals, phone, email, remote support via. Team Viewer, FaceTime, and even on-site support if necessary.

Warehoused Replacement Parts & Accessories For Quick Replacement

Having supported thousands of businesses, hobbyists, educational, military, and Government institutions we know and understand how critical it is to be able to deliver replaced spare parts and timely support. Quality support begins with warehousing ALL parts to the machine you purchase – in our facilities. That way if you have an issue with your laser cutter, we can not only diagnose the problem and can also ship you the part you need same or next day. This way you experience minimal down time.

Lifetime Free Warranty

REDSAIL has improved its warranty! We offer lifetime free warranty for all laser machines.

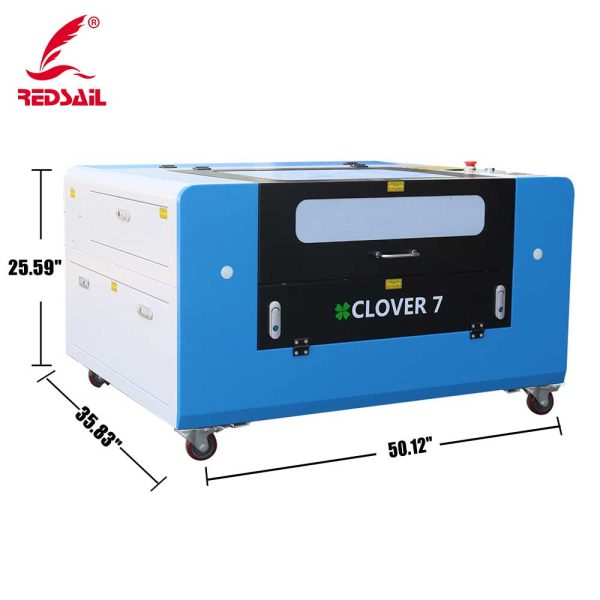

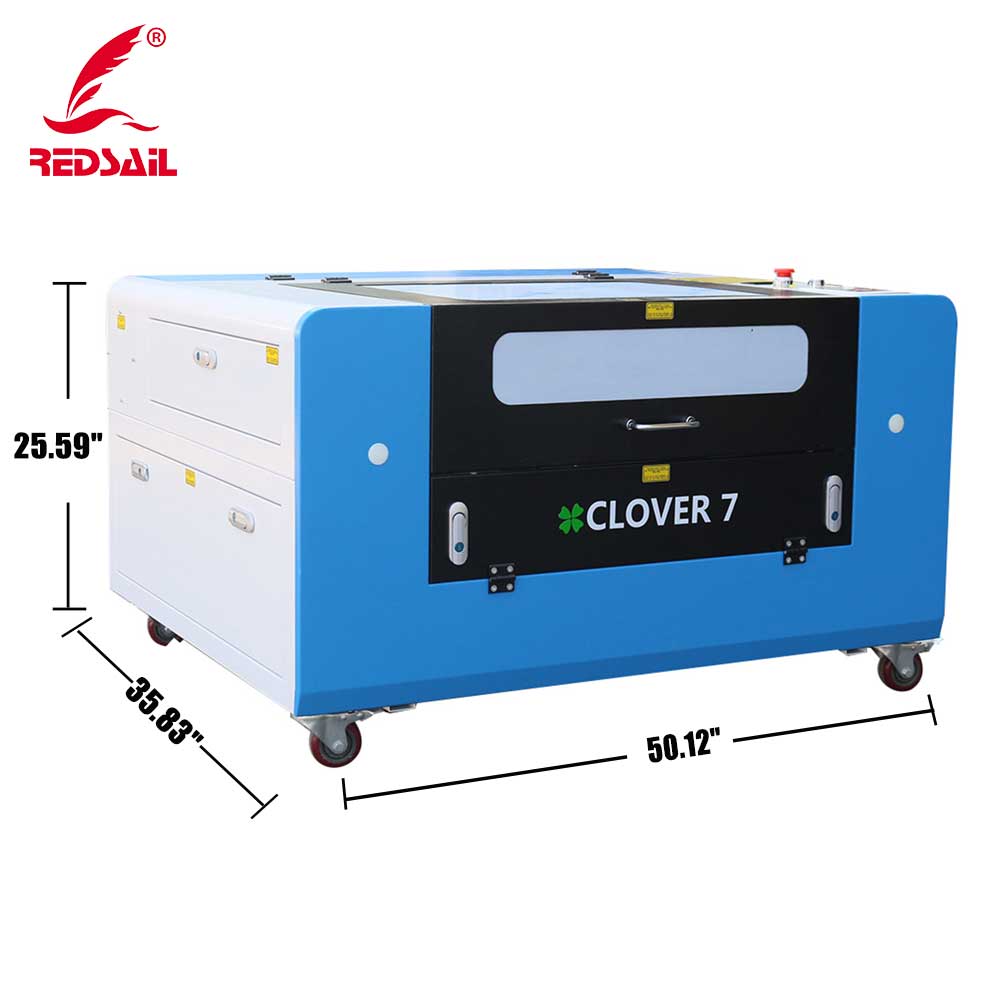

DIMENSIONS
